Bathroom plumbing isn’t always shipped as a single, complete unit. When you buy what’s marketed as a “shower system” — the combination of a large overhead rain head, handheld sprayer, and sleek wall controls — there’s a very good chance the box you receive contains only the visible, decorative parts: handles, trim plates, spray heads. The mechanical device that actually controls water temperature and flow lives inside your wall, and it’s usually a separate product called a rough-in valve (sometimes called a shower valve body). If your plumber opens the box expecting everything they need and finds only trim, your project stops until you source the missing piece. This guide explains exactly how trim kits and rough-in valves relate, why the two are sold separately, and — most importantly — how to cross-reference model numbers so you order both correctly the first time.
What’s Actually in a “Shower System” Box

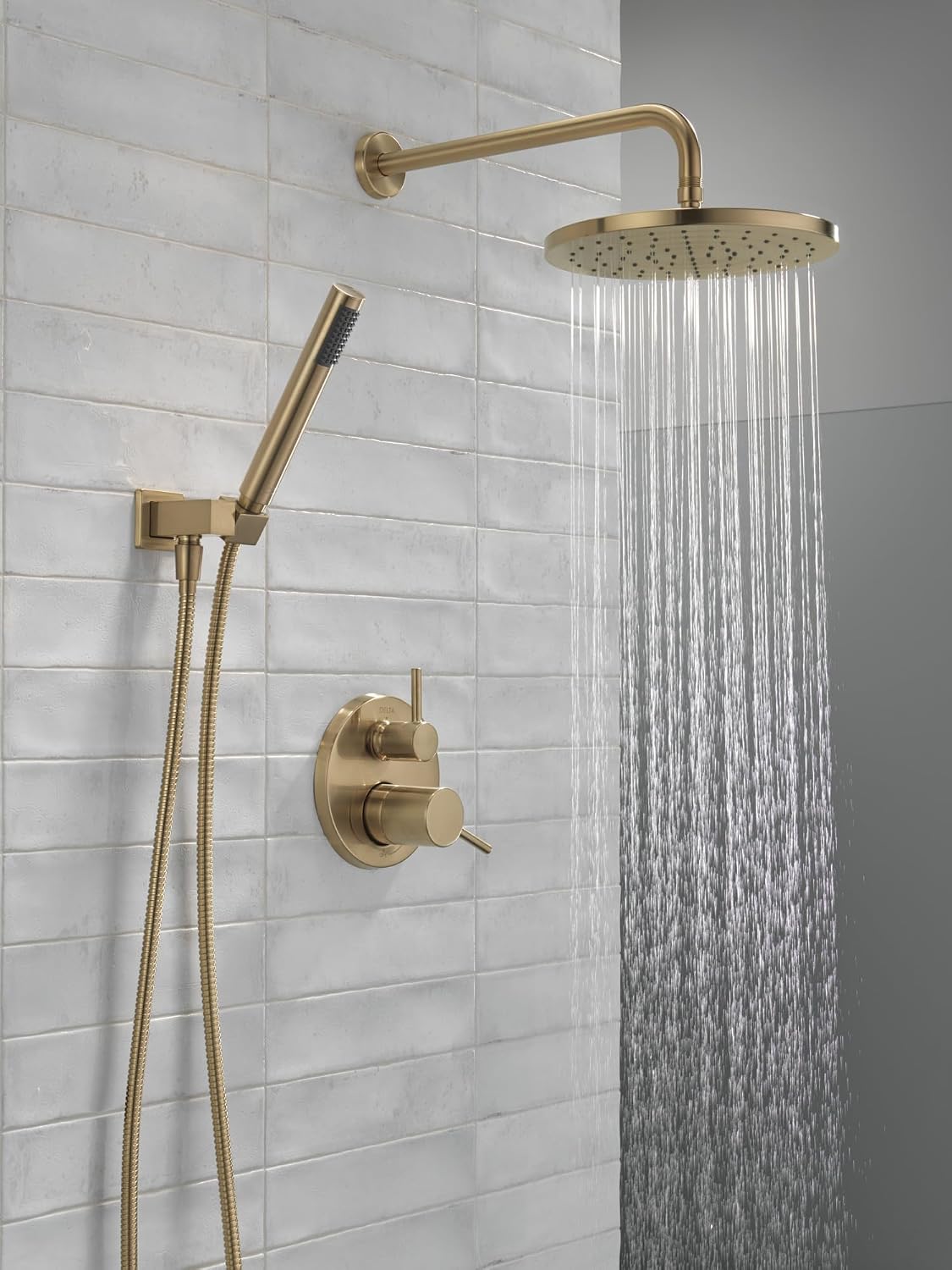

Here’s the friction point: most manufacturers use the word “system” to describe a coordinated collection of trim — the aesthetic, user-facing hardware. A Delta Stryke H2Okinetic Rain System, for example, ships with the shower arm, rain head, hand shower, integrated diverter handle, and all the finish-matched trim escutcheons. What it does not include is the pressure-balancing or thermostatic valve body that mounts to your framing inside the wall.
That valve body is load-bearing in two senses. Functionally, it mixes hot and cold water, maintains a safe scald-protection temperature (the IRC Section P2708.3, per the 2021 International Residential Code, requires pressure-balancing or thermostatic valves in all new shower installations), and provides the water outlets that feed your rain head, body sprays, and handheld simultaneously. Aesthetically, it determines which trim kits are physically compatible — because the trim attaches to the valve body’s cartridge stem and mounts over its escutcheon flange. Mismatch the valve body and the trim won’t seat, seal, or function.
Manufacturers separate the two components for a legitimate reason: rough-in valves are installed once and buried in the wall, potentially for decades. Trim can be swapped if you want to update the look or change a finish. Delta’s MultiChoice Universal Valve, Grohe’s Rapido SmartBox, and Moen’s Posi-Temp platform all reflect this philosophy — one standard valve body, dozens of trim options. The tradeoff is that the purchasing process requires you to explicitly identify and order both halves.
The Two-Part Ordering Framework: Valve Bodies vs. Trim Kits
Delta’s MultiChoice Universal System
Delta’s approach is the most installer-friendly in the U.S. residential market. The MultiChoice Universal Rough-In Valve (sold under Delta model numbers in the R10000 series — R10000-UNBX for the pressure-balance version, R22000-WS for thermostatic) is designed to accept nearly every Delta trim kit sold since the platform launched. According to the Delta Faucet Company’s MultiChoice Universal Valve Installation Guide, the R10000-UNBX is compatible with Monitor 13 and 14 series pressure-balance trims and a wide range of thermostatic trim kits when paired with the correct cartridge.
The critical ordering step: Delta’s product pages list a “Valve Required” field — that field tells you exactly which rough-in valve SKU the trim expects. If you’re specifying a Delta Pivotal or Trinsic rain system, verify whether the multi-function system requires the standard single-function R10000 valve or the newer R45000 MultiChoice with integrated diverter. Ordering the wrong valve means your trim plate won’t cover the escutcheon correctly, and your diverter handle may have no port to connect to.
Grohe’s Rapido SmartBox
Grohe segments its valve lineup more granularly than Delta, which creates more flexibility at the premium end — and more room for error on ordering. Grohe’s Rapido SmartBox comes in two primary configurations relevant to rain systems: the Rapido SmartBox 35600 (for single-lever thermostatic trim) and the Rapido T SmartBox (for the full Grohe Grohtherm Cube and Grohtherm SmartControl thermostatic systems). Grohe’s Rainshower System 310 and 360 SmartActive trim kits specify the Rapido T valve explicitly in their product specification sheets published in the Grohe AG product library.
Where contractors on Houzz’s contractor Q&A threads consistently flag trouble: mixing a Grohtherm SmartControl trim kit (which expects the SmartBox with integrated channel system) with a standard single-outlet Rapido body. The trim will physically mount, but the secondary outlet for the hand shower simply won’t have a valve port, leaving you with dead trim hardware.
Grohe also distinguishes between concealed and exposed valve systems. Most Grohe rain kits in the $800–$2,500 price band use concealed in-wall valve bodies. The Grohe Rainshower SmartActive 360 system, for instance, specifies the concealed Rapido SmartBox. Confirm concealed vs. exposed before ordering rough-in material.
By the Numbers
| Brand | Valve Platform | Trim Compatibility Scope | Thermostatic Upgrade Path |
|---|---|---|---|
| Delta | MultiChoice R10000 (pressure-balance) | Most Monitor 13/14 trims | Add R22000-WS thermostat valve |
| Delta | MultiChoice R45000 (integrated diverter) | Multi-function system trims | Same platform, swap cartridge |
| Grohe | Rapido SmartBox 35600 | Single-lever thermostatic trims | Upgrade to Rapido T for multi-outlet |
| Grohe | Rapido T SmartBox | Grohtherm Cube, SmartControl trims | Already thermostatic; no upgrade needed |
How to Cross-Reference Model Numbers Without Calling a Rep
Ordering both valve and trim correctly comes down to one workflow. Follow it before checkout on any rain system project.
Step 1 — Find the trim kit’s “Compatible Valve” or “Required Valve” field. Every major manufacturer lists this on the product detail page and in the installation manual. For Delta, it appears under “Specifications” as “Valve Required.” For Grohe, check the product spec sheet in the Grohe AG product library — it will list the Rapido model number under “Accessories Required.”
Step 2 — Check the outlet count against your design. A rain head plus a handheld plus body sprays is typically a three-outlet system. A standard single-diverter pressure-balance valve (like Delta’s R10000-UNBX) supports only one active outlet at a time and one diverter. If you want simultaneous rain and hand spray, you need a multi-outlet thermostatic valve or a separate volume control valve for each outlet. This Old House’s editorial guide on shower valve installation explicitly notes that simultaneous multi-outlet operation requires a thermostatic valve — a pressure-balance valve physically cannot support it because diverting pressure to a second outlet disrupts the balancing mechanism.
Step 3 — Confirm the rough-in depth your wall can accommodate. Grohe Rapido SmartBox bodies require a nominal 3.5-inch wall depth (standard 2×4 framing, minimum). Delta’s R10000 fits the same framing. Thermostatic bodies — Grohe Rapido T, Delta R22000 — are larger and often require 2×6 framing or a site-built pony wall. If your tile contractor has already framed a 2×4 shower wall, verify clearance before specifying a deep thermostatic body.
Step 4 — Verify finish code alignment. This matters more than most buyers expect. The valve trim escutcheon, handle, and diverter plate all ship in a finish that must match your rain head arm flange and handshower bracket. Delta’s finish codes (e.g., -SS for stainless, -CZ for champagne bronze, -BL for matte black) must carry across every trim piece. Grohe uses its own codes (Hard Graphite, Brushed Hard Graphite, Brushed Nickel). Ordering the trim kit in matte black and the valve trim escutcheon in brushed nickel is a common split-order error that doesn’t surface until installation day.
Real Trade-Off: Pressure-Balance vs. Thermostatic for Rain Systems
This is the decision that most directly affects both project cost and long-term satisfaction.
Pressure-balance valves (Delta Monitor 14, Grohe Grohtherm 1000) protect against scald events by equalizing hot-and-cold pressure if one supply drops (a toilet flush elsewhere in the house, for example). They do not hold a precise temperature independent of supply temperature fluctuation. For a single-function rain-only shower on a budget, a pressure-balance valve is code-compliant, reliable, and costs $80–$150 for the rough-in body. Trim kits for these valves run $150–$400 depending on finish and brand.
Thermostatic valves (Grohe Grohtherm SmartControl, Delta T27T867, Hansgrohe ShowerSelect) use a wax-element or electronic thermostat to hold a set temperature regardless of supply variation. They also enable simultaneous multi-outlet operation, which is the functional requirement of a true rain-plus-handheld-plus-body-spray system. Rough-in bodies for thermostatic valves run $300–$800; trim kits from $400 to well over $1,500 at the Hansgrohe Axor or Waterworks end. The thermostatic rough-in body is also the platform that grows with your system — add a second volume control valve on the same wall plate to activate additional outlets independently.
If X, then Y — the decision rule:
- If the shower has one outlet (rain head only or a simple diverter to handheld), a pressure-balance valve is sufficient, code-compliant, and meaningfully cheaper. Specify Delta R10000-UNBX or Grohe Rapido SmartBox 35600 with the matching single-lever trim.
- If the shower has two or more outlets running simultaneously, or you’re specifying a premium rain system from Grohe, Hansgrohe, or Delta’s higher H2Okinetic tiers, the thermostatic valve is not a luxury — it’s the enabling hardware. Budget for it from the start.
- If your wall is already framed at 2×4 depth and you want a thermostatic system, verify rough-in depth with your GC before the tile board goes up. A retrofit to 2×6 framing after walls are closed costs multiples of the $200 valve body price differential.
One More Ordering Check: Trim vs. Rough-In Return Policies
Because these components are sold separately, return logistics matter. Most plumbing retailers — including big-box and specialty bath supply — will accept unused, unboxed valve trim kits for return within 30–90 days. Rough-in valve bodies, once the supply lines are sweated or pressed to them, are generally non-returnable. This means the smart sequencing is to confirm your valve body selection and have it on-site first, verify rough-in depth and outlet count against your design, and only then pull the trigger on the trim order. If you’re comparing finishes in person (brushed brass across Grohe and Delta, for instance, read noticeably differently in natural light), request finish samples before ordering trim.
Specifications in this category move frequently — Delta’s MultiChoice platform has had cartridge updates that affect some older trim compatibility, and Grohe has periodically revised SmartBox port configurations between product generations. Verifying current compatibility using each brand’s published spec sheets or their technical support lines before finalizing a purchase order is always worth the 15-minute confirmation call, especially on projects where the tile is already set and a reorder means a delay on the critical path.
